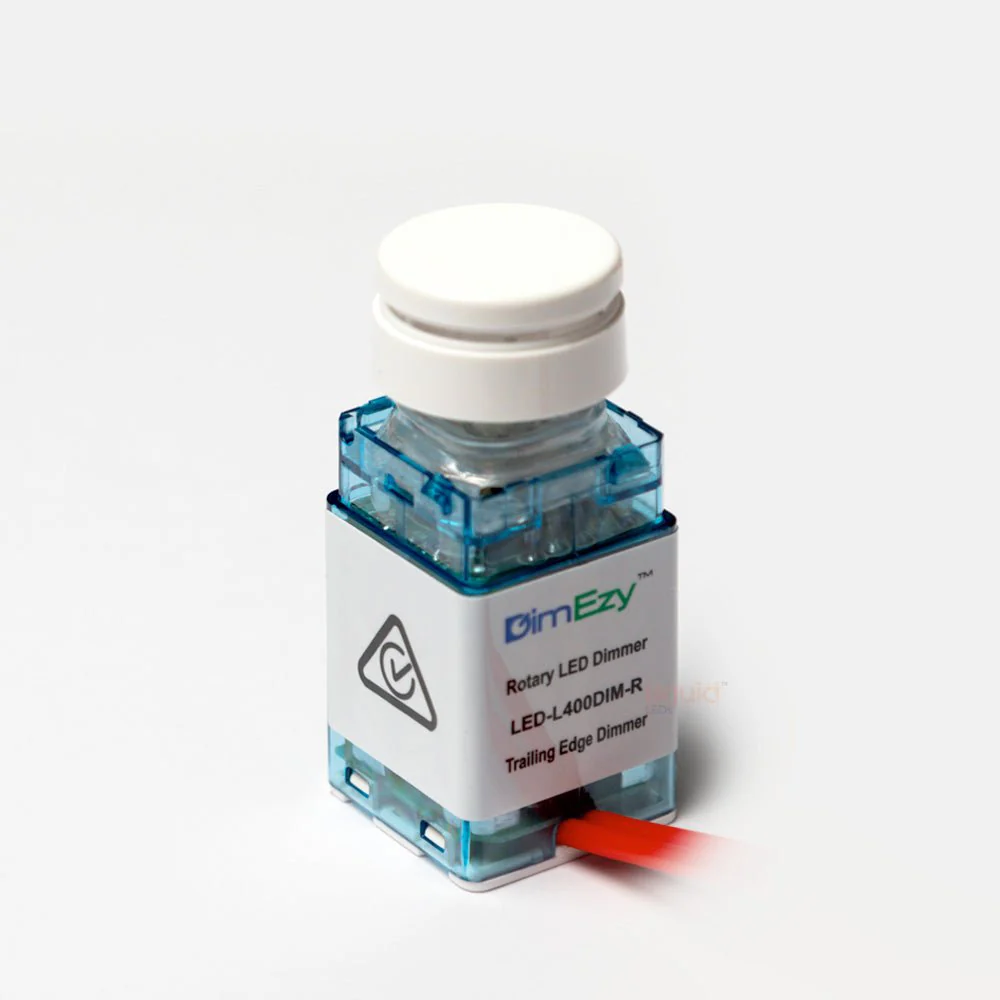

DimEzy™ Rotary LED Dimmer with On/Off
Introducing the DimEzy™ Rotary Controlled LED Trailing-Edge Dimmer, perfect for controlling 240V dimmable LED loads with a maximum capacity of 400W. This dimmer is designed with trailing edge technology, which makes it LED-friendly and fully compatible with dimmable light bulbs & light fittings. With its smooth dimming capabilities, it can dim bulbs to 0% without any flicker and is buzz-free compared to the more common leading-edge dimmers. To turn the lights on or off, simply push the dimmer knob.
Please note that this dimmer does not come with a switch wall plate, as it is meant to be retrofitted to your existing switch wall plate.
Technical Details
| Product Number | LED-L400DIM-R |
| Nominal Operating Voltage | 220-240Vac |
| Maximum Load | 400VA @1 Gang |
| Minimum Load | 5 Watt |
| Dimming Technique | Trailing Edge Phase Control |
| Mounting Centres | 84mm Australian Pattern Plate |
| Safety Compliance | AS/NZ3100, AS/NZ3133, IEC60669-2-1 |
| EMC Compliance | AS/NZS CISPR15, IEC60669-2-1 (26.1, 26.2) IEC61000-3-2 (Excepting when used in conjunction with Electronic loads) |
| Warranty | 36 months |
